| 項目 / ITEMS | 要求 / REQUIREMENTS | 標準 / STANDARD | |||||||||||||||||
| 阻燃測試 / Flame Retardancy Test | 水平燃燒 / FT-2 | UL 758 | |||||||||||||||||
| 火花測試 / Spark Test | AC 6KV / 0.15 S | UL 1581 | |||||||||||||||||
| 耐壓測試 / Withstand Voltage Test | 2KV / 1min. | UL 62 | |||||||||||||||||
|
絕緣機械性能 Mechanical Properties of Insulation |
老化前 / Before Aging | 拉伸強度 / Tensile Strength | ≥3.45 N/mm² | ||||||||||||||||
| 伸長率 / Elongation | ≥100% | ||||||||||||||||||
|
老化后 / After Aging (210±1℃×1440h) |
拉伸強度 / Tensile Strength | 60% before aging | |||||||||||||||||
| 伸長率 / Elongation | 25% before aging | ||||||||||||||||||
| 有害物質控制 Harmful Substance Control | 符合ROHS / ROHS compliance | EU—2002/95/EC | |||||||||||||||||

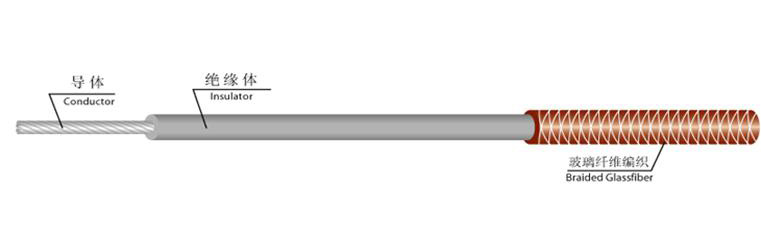

| 規格AWG | 導體 Conductor | 絕緣 Insulation | 編織 Braiding | 公差 | |||||||||||||||
| 截面積 | 結構 | 外徑 | 電阻 | 標稱厚度 | 最小壁厚 | 外徑 | 編織厚度 | 總外徑 | |||||||||||
| Sect. | Structure | Dia. | CR at 20℃ (Max) | Nom. Thicks. | Min. Thicks. | Dia | Braiding Thicks. | Overall Diameter | Allowance | ||||||||||
| mm² | No./mm | mm | Ohm/km | mm | mm | mm | mm | mm | mm | ||||||||||
| 26 | 0.128 | 7/0.16 | 0.48 | 150 | 1.14 | 1.02 | 2.76 | 0.18 | 3.10 | ±0.20 | |||||||||
| 25 | 0.162 | 9/0.16 | 0.56 | 119 | 1.14 | 1.02 | 2.84 | 0.18 | 3.20 | ±0.20 | |||||||||
| 24 | 0.205 | 7/0.20 | 0.60 | 94.2 | 1.14 | 1.02 | 2.88 | 0.18 | 3.25 | ±0.20 | |||||||||
| 23 | 0.259 | 11/0.18 | 0.70 | 74.5 | 1.14 | 1.02 | 2.98 | 0.18 | 3.35 | ±0.20 | |||||||||
22 |
0.324 | 13/0.18 | 0.75 | 59.4 | 1.14 | 1.02 | 3.03 | 0.18 | 3.40 | ±0.20 | |||||||||
| 21 | 0.412 | 17/0.18 | 0.88 | 46.9 | 1.14 | 1.02 | 3.16 | 0.18 | 3.50 | ±0.20 | |||||||||
| 20 | 0.519 | 21/0.18 | 0.93 | 36.7 | 1.14 | 1.02 | 3.24 | 0.18 | 3.60 | ±0.20 | |||||||||
| 19 | 0.653 | 26/0.18 | 1.10 | 29.1 | 1.14 | 1.02 | 3.38 | 0.18 | 3.75 | ±0.20 | |||||||||
| 18 | 0.823 | 7/0.39 | 1.18 | 23.2 | 1.14 | 1.02 | 3.48 | 0.18 | 3.85 | ±0.25 | |||||||||
| 18 | 0.823 | 33/0.18 | 1.18 | 23.2 | 1.14 | 1.02 | 3.48 | 0.18 | 3.85 | ±0.25 | |||||||||
| 17 | 1.0 | 32/0.20 | 1.31 | 18.3 | 1.14 | 1.02 | 3.66 | 0.18 | 4.00 | ±0.25 | |||||||||
| 16 | 1.31 | 7/0.49 | 1.50 | 14.6 | 1.14 | 1.02 | 3.83 | 0.18 | 4.20 | ±0.25 | |||||||||
| 16 | 1.31 | 52/0.18 | 1.50 | 14.6 | 1.14 | 1.02 | 3.83 | 0.18 | 4.20 | ±0.25 | |||||||||
| 15 | 1.65 | 53/0.20 | 1.75 | 11.3 | 1.14 | 1.02 | 4.03 | 0.18 | 4.40 | ±0.30 | |||||||||
| 14 | 2.08 | 7/0.62 | 1.95 | 14.6 | 1.14 | 1.02 | 4.23 | 0.18 | 4.70 | ±0.30 | |||||||||
| 14 | 2.08 | 41/0.254 | 1.95 | 14.6 | 1.14 | 1.02 | 4.23 | 0.18 | 4.70 | ±0.30 | |||||||||
| 13 | 2.63 | 21/0.40 | 2.20 | 7.10 | 1.14 | 1.02 | 4.47 | 0.18 | 4.85 | ±0.30 | |||||||||
| 12 | 3.31 | 27/0.40 | 2.50 | 5.64 | 1.14 | 1.02 | 4.78 | 0.18 | 5.15 | ±0.30 | |||||||||
| 12 | 3.31 | 47/0.30 | 2.50 | 5.64 | 1.14 | 1.02 | 4.78 | 0.18 | 5.15 | ±0.30 | |||||||||
