項目 / ITEMS | 要求 / REQUIREMENTS | 標準 / STANDARD | |||||||||||||||||
阻燃測試 / Flame Retardancy Test | 水平燃燒 / FT-2 | ||||||||||||||||||
火花測試 / Spark Test | AC 6KV / 0.15 S | UL 758 | |||||||||||||||||
耐壓測試 / Withstand Voltage Test | 2KV/1min. | UL 1581 | |||||||||||||||||
絕緣機械性能 Mechanical Properties of Insulation |
老化前 / Before Aging | 拉伸強度 / Tensile Strength | ≥3.45 N/mm² | UL 62 | |||||||||||||||
伸長率 / Elongation | ≥100% | ||||||||||||||||||
老化后 / After Aging (210±1℃×1440h) | 拉伸強度 / Tensile Strength | 60% before aging | |||||||||||||||||
伸長率 / Elongation | 25% before aging | ||||||||||||||||||
有害物質控制 Harmful Substance Control | 符合ROHS / ROHS compliance | EU—2002/95/EC |

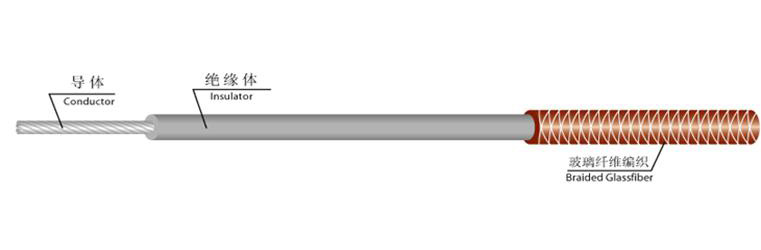

規格AWG | 導體 Conductor | 絕緣 Insulation | 編織 Braiding | 公差 | |||||||||||||||
截面積 | 結構 | 外徑 | 電阻 | 標稱厚度 | 最小壁厚 | 外徑 | 編織厚度 | 總外徑 | |||||||||||
Sect. | Structure | Dia. | CR at 20℃ (Max) | Nom. Thicks. | Min. Thicks. | Dia | Braiding Thicks. | Overall Diameter | Allowance | ||||||||||
mm² | No./mm | mm | Ohm/km | mm | mm | mm | mm | mm | mm | ||||||||||
12 | 3.31 | 47/0.30 | 2.5 | 5.43 | 0.76 | 0.69 | 4.05 | 0.18 | 4.4 | +0.30/-0.20 |
