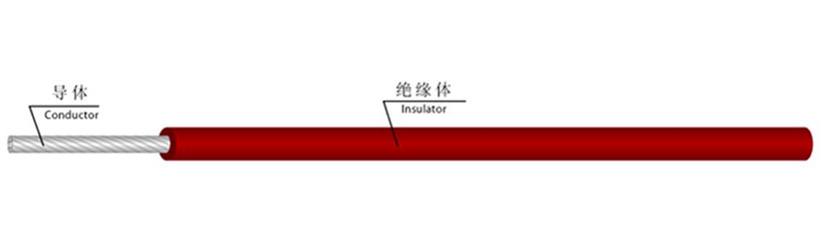

| 項目 / ITEMS | 要求 / REQUIREMENTS | 標準 / STANDARD | |||||||||||||||||
| 阻燃測試 / Flame Retardancy Test | 水平燃燒 / FT-2 | UL 758 | |||||||||||||||||
| 火花測試 / Spark Test | AC 6KV / 0.15 S | UL 1581 | |||||||||||||||||
| 耐壓測試 / Withstand Voltage Test | 2KV/1min. | UL 62 | |||||||||||||||||
|
絕緣機械性能 Mechanical Properties of Insulation |
老化前 / Before Aging | 拉伸強度 / Tensile Strength | ≥3.45 N/mm² | ||||||||||||||||
| 伸長率 / Elongation | ≥100% | ||||||||||||||||||
|
老化后 / After Aging (210±1℃×1440h) |
拉伸強度 / Tensile Strength | 60% before aging | |||||||||||||||||
| 伸長率 / Elongation | 25% before aging | ||||||||||||||||||
| 有害物質控制 Harmful Substance Control | 符合ROHS / ROHS compliance | EU—2002/95/EC | |||||||||||||||||
| 規格 | 導體 | 絕緣 | 公差 | ||||||||||||||||
| 截面積 | 結構 | 電阻 | 壁厚 | 最小壁厚 | 總外徑 | ||||||||||||||
| Sect. | Structure | CR at 20℃ (Max) | Nom. Thicks. | Min. Thicks. | Overall Diameter | Allowance | |||||||||||||
| AWG | mm² | No./mm | Ohm/km | mm | mm | mm | mm | ||||||||||||
| 26 | 0.128 | 8/0.15 | 150 | 0.76 | 0.69 | 2.00 | ±0.10 | ||||||||||||
| 24 | 0.205 | 7/0.20 | 94.2 | 0.76 | 0.69 | 2.15 | ±0.10 | ||||||||||||
| 22 | 0.324 | 7/0.25 | 59.4 | 0.76 | 0.69 | 2.3 | ±0.15 | ||||||||||||
| 22 | 0.324 | 13/0.18 | 59.4 | 0.76 | 0.69 | 2.3 | ±0.15 | ||||||||||||
|
22 |
0.3 | 17/0.15 | 59.4 | 0.76 | 0.69 | 2.25 | ±0.15 | ||||||||||||
| 20 | 0.519 | 21/0.18 | 36.4 | 0.76 | 0.69 | 2.5 | ±0.15 | ||||||||||||
| 20 | 0.5 | 7/0.30 | 36.4 | 0.76 | 0.69 | 2.45 | ±0.15 | ||||||||||||
| 20 | 0.5 | 28/0.15 | 36.4 | 0.76 | 0.69 | 2.45 | ±0.15 | ||||||||||||
| 18 | 0.823 | 7/0.39 | 23.2 | 0.76 | 0.69 | 2.74 | ±0.15 | ||||||||||||
| 18 | 0.823 | 33/0.18 | 23.2 | 0.76 | 0.69 | 2.74 | ±0.15 | ||||||||||||
| 16 | 1.31 | 7/0.49 | 14.6 | 0.76 | 0.69 | 3.02 | ±0.20 | ||||||||||||
| 16 | 1.31 | 52/0.18 | 14.6 | 0.76 | 0.69 | 3.02 | ±0.20 | ||||||||||||
| 14 | 2.08 | 7/0.62 | 8.96 | 0.76 | 0.69 | 2.45 | ±0.25 | ||||||||||||
| 14 | 2.08 | 41/0.254 | 8.96 | 0.76 | 0.69 | 2.45 | ±0.25 | ||||||||||||
| 12 | 3.31 | 27/0.40 | 5.64 | 0.76 | 0.69 | 4.05 | ±0.25 | ||||||||||||
| 12 | 3.31 | 47/0.30 | 5.64 | 0.76 | 0.69 | 4.05 | ±0.25 | ||||||||||||
