| 項目 / ITEMS |
要求 / REQUIREMENTS |
標準 / STANDARD | |||||||||||||||||
| 火花測試 / Spark Test | AC 6KV / 0.15 S | GB5013.1 | |||||||||||||||||
| 耐壓測試 / Withstand Voltage Test | 2KV/1min. | GB5013.2 | |||||||||||||||||
|
絕緣機械性能 Mechanical Properties of Insulation |
老化前 / Before Aging | 拉伸強度 / Tensile Strength | ≥5.0 N/mm² | GB5013.3 | |||||||||||||||
| 伸長率 / Elongation | ≥150% | ||||||||||||||||||
|
老化后 / After Aging (200±2℃×240h) |
拉伸強度 / Tensile Strength | ≥4.0 N/mm² | |||||||||||||||||
| 伸長率 / Elongation | ≥120% | ||||||||||||||||||
| 有害物質控制 / Harmful Substance Control | 符合ROHS / ROHS compliance | EU—2002/95/EC | |||||||||||||||||

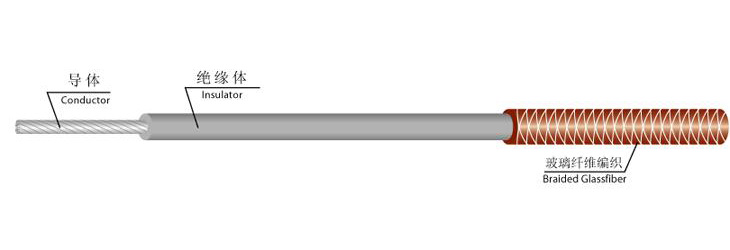

| 規格 | 導體 Conductor | 絕緣 Insulation | 編織 Braiding | 公差 | |||||||||||||||
| 截面積 | 結構 | 外徑 | 電阻 | 標稱厚度 | 最小壁厚 | 外徑 | 編織厚度 | 總外徑 | |||||||||||
| Sect. | Structure | Dia. | CR at 20℃ (Max) | Nom. Thicks. | Min. Thicks. | Dia | Braiding Thicks. | Overall Diameter | Allowance | ||||||||||
| mm² | No./mm | mm | Ohm/km | mm | mm | mm | mm | mm | mm | ||||||||||
| 0.5 | 0.5 | 16/0.20 | 0.93 | 40.1 | 0.6 | 0.44 | 2.35 | 0.18 | 2.7 | +0.15/-0.1 | |||||||||
| 0.75 | 0.75 | 24/0.20 | 1.14 | 26.7 | 0.6 | 0.44 | 2.55 | 0.18 | 2.9 | +0.15/-0.1 | |||||||||
| 1.0 | 1.0 | 32/0.20 | 1.34 | 20 | 0.6 | 0.44 | 2.65 | 0.18 | 3 | +0.15/-0.1 | |||||||||
|
1.5 |
1.5 | 48/0.20 | 1.6 | 13.7 | 0.7 | 0.53 | 3.15 | 0.18 | 3.5 | +0.2/-0.15 | |||||||||
| 2.5 | 2.5 | 49/0.25 | 2 | 8.21 | 0.8 | 0.62 | 3.75 | 0.18 | 4.1 | +0.3/-0.15 | |||||||||
| 4 | 4 | 56/0.30 | 2.7 | 5.09 | 0.8 | 0.62 | 4.35 | 0.18 | 4.7 | +0.3/-0.20 | |||||||||
| 6 | 6 | 56/0.40 | 3.3 | 3.39 | 0.8 | 0.62 | 4.9 | 0.18 | 5.3 | +0.3/-0.30 | |||||||||
| 10 | 10 | 64/0.40 | 4.6 | 1.95 | 1 | 0.8 | 6.7 | 0.18 | 7.1 | +0.4/-0.40 | |||||||||
| 16 | 16 | 12/0.40 | 5.8 | 1.24 | 1 | 0.8 | 7.9 | 0.18 | 8.3 | +0.4/-0.40 | |||||||||
