| 項目 / ITEMS | 要求 / REQUIREMENTS | 標準 / STANDARD | |||||||||||||||||
| 阻燃測試 / Flame Retardancy Test | 水平燃燒 / FT-2 | UL 758 | |||||||||||||||||
| 火花測試 / Spark Test | AC3KV / 0.15 S | UL 1581 | |||||||||||||||||
| 耐壓測試 / Withstand Voltage Test | 2KV /1min | UL 62 | |||||||||||||||||
|
絕緣機械性能 Mechanical Properties of Insulation |
老化 / Before Aging |
拉伸強度 / Tensile Strength | ≥13.79 N/mm² | ||||||||||||||||
| 伸長率 / Elongation | ≥300% | ||||||||||||||||||
|
老化后 / After Aging (180 ± 1℃ × 168h) |
拉伸強度 / Tensile Strength | 80% before aging | |||||||||||||||||
| 伸長率 / Elongation | 80% before aging | ||||||||||||||||||
| 有害物質控制 Harmful Substance Control | 符合ROHS / ROHS compliance | EU—2002/95/EC | |||||||||||||||||

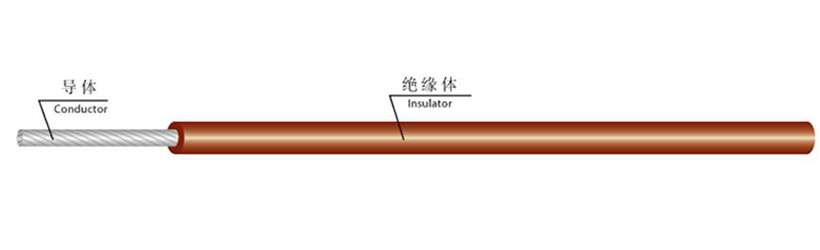

| 規格 | 導體 | 絕緣 | 公差 | ||||||||||||||||
| 截面積 | 結構 | 電阻 | 壁厚 | 最小壁厚 | 總外徑 | ||||||||||||||
| Sect. | Structure | CR at 20℃ (Max) | Nom. Thicks. | Min. Thicks. | Overall Diameter | Allowance | |||||||||||||
| AWG | mm² | No./mm | Ohm/km | mm | mm | mm | mm | ||||||||||||
| 32 | 0.0324 | 5/0.10 | 563 | 0.38 | 0.33 | 1.04 | ±0.10 | ||||||||||||
| 31 | 0.0401 | 6/0.10 | 456 | 0.38 | 0.33 | 1.06 | ±0.10 | ||||||||||||
| 30 | 0.0507 | 7/0.10 | 381 | 0.38 | 0.33 | 1.08 | ±0.10 | ||||||||||||
| 29 | 0.0647 | 9/0.10 | 297 | 0.38 | 0.33 | 1.14 | ±0.10 | ||||||||||||
| 28 | 0.0804 | 11/0.10 | 239 | 0.38 | 0.33 | 1.18 | ±0.10 | ||||||||||||
| 27 | 0.102 | 13/0.10 | 188 | 0.38 | 0.33 | 1.22 | ±0.10 | ||||||||||||
| 26 | 0.128 | 8/0.15 | 150 | 0.38 | 0.33 | 1.28 | ±0.10 | ||||||||||||
| 25 | 0.162 | 9/0.16 | 199 | 0.38 | 0.33 | 1.35 | ±0.10 | ||||||||||||
| 24 | 0.205 | 7/0.20 | 94.2 | 0.38 | 0.33 | 1.40 | ±0.10 | ||||||||||||
| 23 | 0.259 | 11/0.18 | 74.5 | 0.38 | 0.33 | 1.48 | ±0.10 | ||||||||||||
| 22 | 0.324 | 13/0.18 | 59.4 | 0.38 | 0.33 | 1.55 | ±0.10 | ||||||||||||
| 21 | 0.412 | 17/0.18 | 46.9 | 0.38 | 0.33 | 1.65 | ±0.10 | ||||||||||||
| 20 | 0.519 | 21/0.18 | 36.7 | 0.38 | 0.33 | 1.75 | ±0.10 | ||||||||||||
| 19 | 0.653 | 26/0.18 | 29.1 | 0.38 | 0.33 | 1.85 | ±0.10 | ||||||||||||
18 |
0.823 | 33/0.18 | 23.2 | 0.38 | 0.33 | 2.00 | ±0.15 | ||||||||||||
| 17 | 1.04 | 40/0.18 | 18.3 | 0.38 | 0.33 | 2.10 | ±0.15 | ||||||||||||
| 16 | 1.31 | 52/0.18 | 14.6 | 0.38 | 0.33 | 2.30 | ±0.15 | ||||||||||||
| 15 | 1.65 | 33/0.254 | 11.3 | 0.38 | 0.33 | 2.55 | ±0.20 | ||||||||||||
| 14 | 2.08 | 41/0.254 | 8.96 | 0.38 | 0.33 | 2.75 | ±0.20 | ||||||||||||
| 13 | 2.63 | 52/0.254 | 7.10 | 0.38 | 0.33 | 3.00 | ±0.20 | ||||||||||||
| 12 | 3.31 | 47/0.30 | 5.64 | 0.38 | 0.33 | 3.30 | ±0.25 | ||||||||||||
| 11 | 4.17 | 59/0.30 | 4.48 | 0.38 | 0.33 | 3.60 | ±0.25 | ||||||||||||
| 10 | 5.26 | 75/0.30 | 3.546 | 0.38 | 0.33 | 4.20 | ±0.25 | ||||||||||||
