| 項目 / ITEMS | 要求 / REQUIREMENTS | 標準 / STANDARD | |||||||||||||||||
| 阻燃測試 / Flame Retardancy Test | 垂直燃燒 / VW-1 | UL 758 | |||||||||||||||||
| 火花測試 / Spark Test | (AC 6KV or 7.5KV) / 0.15 S | UL 1581 | |||||||||||||||||
| 耐壓測試 / Withstand Voltage Test | (2KV or 2.5 KV or 3KV or 3.5KV) /1min | UL 62 | |||||||||||||||||
|
絕緣機械性能 Mechanical Properties of Insulation |
老化前 / Before Aging | 拉伸強度 / Tensile Strength | ≥13.79 N/mm² | ||||||||||||||||
| 伸長率 / Elongation | ≥300% | ||||||||||||||||||
|
老化后 / After Aging (180 ± 1℃ × 168h) |
拉伸強度 / Tensile Strength | 80% before aging | |||||||||||||||||
| 伸長率 / Elongation | 80% before aging | ||||||||||||||||||
| 有害物質控制 Harmful Substance Control | 符合ROHS / ROHS compliance | EU—2002/95/EC | |||||||||||||||||

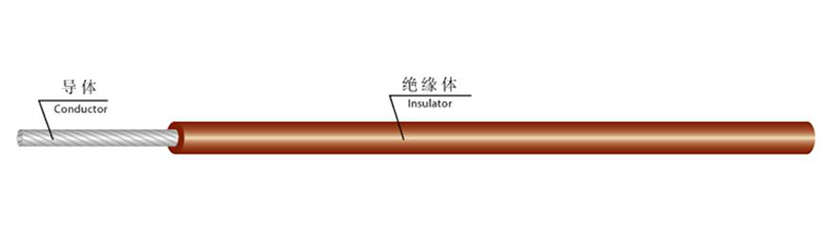

| 規格 | 導體 | 絕緣 | 公差 | ||||||||||||||||
| 截面積 | 結構 | 電阻 | 壁厚 | 最小壁厚 | 總外徑 | ||||||||||||||
| Sect. | Structure | CR at 20℃ (Max) | Nom. Thicks. | Min. Thicks. | Overall Diameter | Allowance | |||||||||||||
| AWG | mm² | No./mm | Ohm/km | mm | mm | mm | mm | ||||||||||||
| 30 | 0.128 | 7/0.10 | 381 | 0.76 | 0.69 | 1.84 | ±0.10 | ||||||||||||
| 28 | 0.205 | 9/0.10 | 239 | 0.76 | 0.69 | 1.90 | ±0.10 | ||||||||||||
| 26 | 0.128 | 7/0.16 | 150 | 0.76 | 0.69 | 2.02 | ±0.10 | ||||||||||||
| 24 | 0.205 | 7/0.20 | 94.2 | 0.76 | 0.69 | 2.16 | ±0.10 | ||||||||||||
| 22 | 0.324 | 13/0.18 | 59.4 | 0.76 | 0.69 | 2.30 | ±0.10 | ||||||||||||
| 20 | 0.519 | 21/0.18 | 36.7 | 0.76 | 0.69 | 2.50 | ±0.15 | ||||||||||||
|
18 |
0.823 | 33/0.18 | 23.2 | 0.76 | 0.69 | 2.76 | ±0.15 | ||||||||||||
| 16 | 1.31 | 52/0.28 | 14.6 | 0.76 | 0.69 | 3.05 | ±0.20 | ||||||||||||
| 14 | 2.08 | 41/0.254 | 8.96 | 0.76 | 0.69 | 3.48 | ±0.20 | ||||||||||||
| 12 | 3.31 | 47/0.30 | 5.64 | 0.76 | 0.69 | 4.15 | ±0.25 | ||||||||||||
| 10 | 5.26 | 75/0.30 | 3.546 | 0.76 | 0.69 | 4.90 | ±0.25 | ||||||||||||
| 9 | 6.631 | 53/0.40 | 2.230 | 0.76 | 0.69 | 5.40 | ±0.25 | ||||||||||||
| 8 | 8.367 | 70/0.40 | 2.230 | 1.14 | 1.02 | 6.60 | ±0.25 | ||||||||||||
| 7 | 10.55 | 84/0.40 | 1.768 | 1.14 | 1.02 | 7.10 | ±0.30 | ||||||||||||
| 6 | 13.30 | 105/0.40 | 1.403 | 1.14 | 1.02 | 6.10 | ±0.30 | ||||||||||||
| 5 | 16.77 | 133/0.40 | 1.113 | 1.14 | 1.02 | 6.80 | ±0.40 | ||||||||||||
| 4 | 21.15 | 168/0.40 | 0.882 | 1.14 | 1.02 | 7.60 | ±0.40 | ||||||||||||
| 3 | 26.67 | 210/0.40 | 0.6996 | 1.52 | 1.37 | 10.70 | ±0.40 | ||||||||||||
| 2 | 33.62 | 266/0.40 | 0.5548 | 1.52 | 1.37 | 11.60 | ±0.40 | ||||||||||||
| 1 | 42.41 | 217/0.50 | 0.4398 | 2.04 | 1.83 | 13.60 | ±0.40 | ||||||||||||
| 1/0 | 53.49 | 276/0.50 | 0.3487 | 2.04 | 1.83 | 15.20 | ±0.40 | ||||||||||||
| 2/0 | 67.53 | 342/0.50 | 0.2766 | 2.04 | 1.83 | 16.20 | ±0.40 | ||||||||||||
| 3/0 | 85.01 | 437/0.50 | 0.2194 | 2.04 | 1.83 | 17.80 | ±0.40 | ||||||||||||
| 4/0 | 107.2 | 551/0.50 | 0.1722 | 2.04 | 1.83 | 19.50 | ±0.50 | ||||||||||||
